KGDR 2525M6T30, External Grooving Toolholder

KGDR 2525M6T30, External Grooving Toolholder

SKU:
THT03897
|
UPC:
4960664614967
$200.43
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 2525M6T30, Right-Hand, External Grooving Toolholder with a 30.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Right-Hand

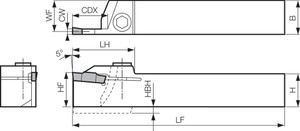

[CDX] Max Depth of Cut (mm):
30.00
[CWN] Cutting Width Minimum (mm):
6.00
[CWX] Cutting Width Maximum (mm):
6.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM6…, GDMS6…, GDG6…, GDGS6… Inserts
ANSI Part Number:
KGDR2525M6T30
ISO Part Number:
KGDR2525M-6T30
US Stock:
2
Worldwide Stock:
8
Compatible Inserts (Partial):
GDM6…, GDMS6…, GDG6…, GDGS6…
Old Material Number:
8834999
Clamp Screw:
HH5X25
Wrench (for Clamp Screw):
LW-4
Tightening Torque:
6.5 Nm
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
45.50
[CW] Cutting Width (Decimal Inch):
0.2362
[CW] Cutting Width (mm):
6.00
[CDX] Max Depth of Cut (Decimal Inch):
1.1811
[CWN] Cutting Width Minimum (Decimal Inch):
0.2362
[CWX] Cutting Width Maximum (Decimal Inch):
0.2362
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.7913
