KGDR 2525X4T25S, External Grooving Toolholder
$239.26
(No reviews yet)
Write a Review
KGDR 2525X4T25S, External Grooving Toolholder
KGDR 2525X4T25S, Right-Hand, External Grooving Toolholder with a 25.00mm Max Depth of Cut for Grooving and Cut-Off Applications
- Tool Style:
- KGD-S
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- Cut-Off|External Grooving
- Hand:
- Right-Hand

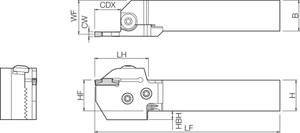

- [CDX] Max Depth of Cut (mm):
- 25.00
- [CWN] Cutting Width Minimum (mm):
- 4.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- [H] Shank Height (mm):
- 25.00
- [B] Shank Width (mm):
- 25.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- High rigidity SwitchBlade style holder
- Feature 2:
- Adaptable to a wide range of applications by swapping out blades
- Feature 3:
- Various edge widths and cutting depths can be achieved by changing the blade and toolholder combination
- Feature 4:
- Compatible with GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5… Inserts
- ANSI Part Number:
- KGDR2525X4T25S
- ISO Part Number:
- KGDR2525X-4T25S
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5…
- Old Material Number:
- 8835614
- Clamp Screw:
- BH6X10TR
- Blade Screw:
- SB-60120TR
- Wrench (for Clamp Screw):
- LTW-25
- Compatible Blade (Partial):
- KGDR-4T25-C
- Compatible Toolholder (Partial):
- KGDR2525-C
- [LF] Functional Length (mm):
- 155.00
- [LH] Head Length (mm):
- 48.00
- [CW] Cutting Width (Decimal Inch):
- 0.1575 - 0.1969
- [CW] Cutting Width (mm):
- 4.00 - 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.9843
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1575
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
- [H] Shank Height (Decimal Inch):
- 0.9843
- [B] Shank Width (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 6.1024
- [LH] Head Length (Decimal Inch):
- 1.8898
- Series Description (PeopleSoft):
- KGD Grooving
- Series Description:
- KGD Grooving
