KGDR 57224JCTM, External Grooving Toolholder

KGDR 57224JCTM, External Grooving Toolholder

SKU:
THT05521
|
UPC:
4960664988464
$322.29
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 57224JCTM, Right-Hand, Coolant-Through External Grooving Toolholder with a 0.4724" Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD-JCTM
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
12.00
[CWN] Cutting Width Minimum (mm):
2.40
[CWX] Cutting Width Maximum (mm):
3.00
[CUTDIA] Maximum Cut-Off Diameter (mm):
24.00
[H] Shank Height (mm):
12.70
[B] Shank Width (mm):
18.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Coolant Pressure Resistance (psi):
With Coupler (Pump Pressure: Up to 1,090 psi), Without Coupler (Pump Pressure: up to 2,900 psi)
Feature 1:
Direct Coolant-Through Holders for Small Parts Machining
Feature 2:
Supports Internal Coolant with or without Piping Systems
Feature 3:

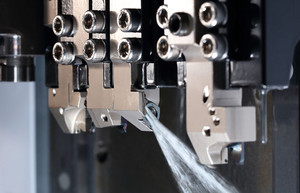

Discharges Coolant Directly Toward the Rake Surface of Insert
Feature 4:
Compatible with Right-Hand or Neutral GDM… and GDG… Style Inserts
ANSI Part Number:
KGDR57224JCTM
ISO Part Number:
KGDR5.72-2.4JCTM
US Stock:
9
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM24…, GDMS24…, GDG24…, GDGS24…, GDM3…, GDMS3…, GDG3…, GDGS3…
Old Material Number:
8867333
Clamp Screw:
SB-40120TR
Plug 1:
GP-1
Plug 2:
HS5X4LP
Wrench (for Clamp Screw):
LTW-15S
[LF] Functional Length (mm):
120.65
[LH] Head Length (mm):
19.558
[CW] Cutting Width (Decimal Inch):
0.0945 - 0.1181
[CW] Cutting Width (mm):
2.40 - 3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.4724
[CWN] Cutting Width Minimum (Decimal Inch):
0.0945
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.5000
[B] Shank Width (Decimal Inch):
0.7087
[LF] Functional Length (Decimal Inch):
4.7500
[LH] Head Length (Decimal Inch):
0.7700
