KGDSR 1616JX2B, Cut-Off Toolholder

KGDSR 1616JX2B, Cut-Off Toolholder

SKU:
THT03699
|
UPC:
4960664692552
$171.59
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDSR 1616JX2B, Right-Hand, Cut-Off Toolholder with a 16.00mm Cutting Edge Height for KGDS Applications

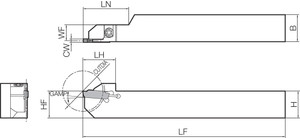

Additional Information
Tool Style:
KGDS
Material:
Steel
Application:
Cut-Off|Sub-Spindle
Hand:
Right-Hand
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
3.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
0.9449
[CUTDIA] Maximum Cut-Off Diameter (mm):
24.00
[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand KGDS Toolholder
Feature 2:
Application : KGDS
Feature 3:
Clamp Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand Insert Reliant Inserts
ANSI Part Number:
KGDSR1616JX2B
ISO Part Number:
KGDSR1616JX-2B
US Stock:
0
Worldwide Stock:
5
Compatible Inserts (Partial):
Insert Reliant
Old Material Number:
8838762
Clamp Screw:
SB-40120TR
Wrench (for Clamp Screw):
LTW-15S
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
19.50
[CW] Cutting Width (Decimal Inch):
0.0787 - 0.1181
[CW] Cutting Width (mm):
2.00 - 3.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7677
