KGHSR 2020K5, External Grooving Toolholder
$233.92
(No reviews yet)
Write a Review
KGHSR 2020K5, External Grooving Toolholder
KGHSR 2020K5, Right-Hand, External Grooving Toolholder with a 13.00mm Max Depth of Cut for Deep Grooving Applications
- Tool Style:
- KGHS
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- External Deep Grooving|External Grooving
- Hand:
- Right-Hand

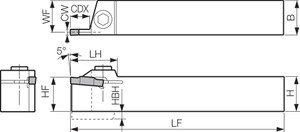

- [CDX] Max Depth of Cut (mm):
- 13.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 6.50
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Great for various Deep Grooving applications
- Feature 2:
- Compatible with GH5…, GHU5…, GH6…, GHU6… style inserts
- ANSI Part Number:
- KGHSR2020K5
- ISO Part Number:
- KGHSR2020K-5
- Compatible Inserts (Partial):
- GH5…, GHU5…, GH6…, GHU6…
- Old Material Number:
- 8812252
- Clamp:
- CGH-1L
- Clamp Screw:
- HH6X25
- Washer:
- W-6
- Wrench (for Clamp Screw):
- LW-5
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 25.00
- [CW] Cutting Width (Decimal Inch):
- 0.1969 - 0.2559
- [CW] Cutting Width (mm):
- 5.00 - 6.50
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.5118
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.2559
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 0.9843
