KGML 2525M8, External Grooving Toolholder

KGML 2525M8, External Grooving Toolholder

SKU:
THT00285
$217.15
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGML 2525M8, Left-Hand, External Grooving Toolholder with a 25.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGM
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Left-Hand

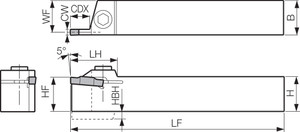

[CDX] Max Depth of Cut (mm):
25.00
[CWN] Cutting Width Minimum (mm):
8.00
[CWX] Cutting Width Maximum (mm):
8.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Great for various Grooving and Cut-Off applications
Feature 2:
Compatible with GMM8…, GMG8…, GMGA8… style inserts
ANSI Part Number:
KGML2525M8
ISO Part Number:
KGML2525M-8
Compatible Inserts (Partial):
GMM8…, GMG8…, GMGA8…
Old Material Number:
8812274
Clamp Screw:
HH6X25
Wrench (for Clamp Screw):
LW-5
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
40.00
[CW] Cutting Width (Decimal Inch):
0.3150
[CW] Cutting Width (mm):
8.00
[CDX] Max Depth of Cut (Decimal Inch):
0.9843
[CWN] Cutting Width Minimum (Decimal Inch):
0.3150
[CWX] Cutting Width Maximum (Decimal Inch):
0.3150
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.5748
