KGMR 3232P5T25, External Grooving Toolholder
$267.28
(No reviews yet)
Write a Review
KGMR 3232P5T25, External Grooving Toolholder
KGMR 3232P5T25, Right-Hand, External Grooving Toolholder with a 25.00mm Max Depth of Cut for Grooving and Cut-Off Applications
- Tool Style:
- KGM
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- Cut-Off|External Grooving
- Hand:
- Right-Hand

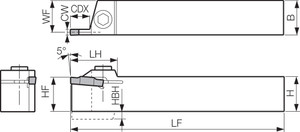

- [CDX] Max Depth of Cut (mm):
- 25.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 6.00
- [H] Shank Height (mm):
- 32.00
- [B] Shank Width (mm):
- 32.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Great for various Grooving and Cut-Off applications
- Feature 2:
- Compatible with GMM5…, GMG5…, GMN5…, FGGR5…, FGGL5…, GMM6…, GMG6…, GMN6…, GMGA6… style inserts
- ANSI Part Number:
- KGMR3232P5T25
- ISO Part Number:
- KGMR3232P-5T25
- Compatible Inserts (Partial):
- GMM5…, GMG5…, GMN5…, FGGR5…, FGGL5…, GMM6…, GMG6…, GMN6…, GMGA6…
- Old Material Number:
- 8812289
- Clamp Screw:
- HH5X25
- Wrench (for Clamp Screw):
- LW-4
- [LF] Functional Length (mm):
- 170.00
- [LH] Head Length (mm):
- 42.00
- [CW] Cutting Width (Decimal Inch):
- 0.1969 - 0.2362
- [CW] Cutting Width (mm):
- 5.00 - 6.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.9843
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.2362
- [H] Shank Height (Decimal Inch):
- 1.2598
- [B] Shank Width (Decimal Inch):
- 1.2598
- [LF] Functional Length (Decimal Inch):
- 6.6929
- [LH] Head Length (Decimal Inch):
- 1.6535
