KGMWR 2525M6, External Grooving Toolholder

KGMWR 2525M6, External Grooving Toolholder

SKU:
THT01600
|
UPC:
4960664467112
$206.48
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGMWR 2525M6, Right-Hand, External Grooving Toolholder with a 25.00mm Max Depth of Cut for Aluminum Wheel Grooving Applications
Additional Information
Tool Style:
KGMW
Material:
Steel
Grooving Type:
External Grooving
Application:
Aluminum Wheel External Grooving
Hand:
Right-Hand

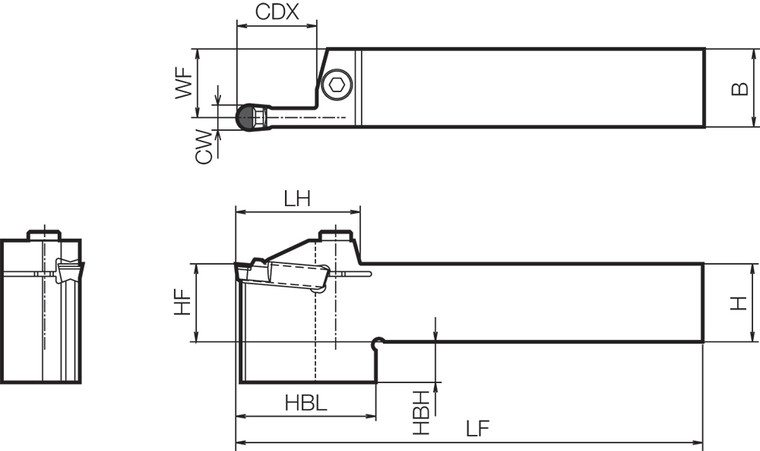

[CDX] Max Depth of Cut (mm):
25.00
[CWN] Cutting Width Minimum (mm):
6.00
[CWX] Cutting Width Maximum (mm):
6.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Great for various Aluminum Wheel Grooving applications
Feature 2:
Compatible with GMGW6030-30R style inserts
ANSI Part Number:
KGMWR2525M6
ISO Part Number:
KGMWR2525M-6
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GMGW6030-30R
Old Material Number:
8838545
Clamp Screw:
HH6X25
Wrench (for Clamp Screw):
LW-5
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
40.00
[CW] Cutting Width (Decimal Inch):
0.2362
[CW] Cutting Width (mm):
6.00
[CDX] Max Depth of Cut (Decimal Inch):
0.9843
[CWN] Cutting Width Minimum (Decimal Inch):
0.2362
[CWX] Cutting Width Maximum (Decimal Inch):
0.2362
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.5748
