KIGBAL 163, Internal Grooving Toolholder
$236.76
(No reviews yet)
Write a Review
KIGBAL 163, Internal Grooving Toolholder
KIGBAL 163, Left-Hand Internal Grooving Holder with a 1.3800" Minimum Bore Diameter for Internal Large Diameter Shallow Grooving Applications
- Tool Style:
- KIGBA
- Material:
- Steel
- Grooving Type:
- Internal Grooving
- Application:
- Large Diameter Shallow Grooving
- Hand:
- Left-Hand

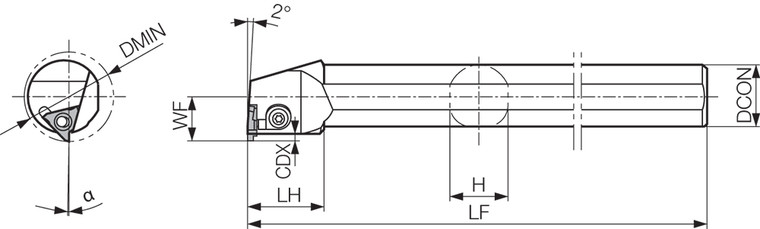

- [KAPR] Tool Entering Angle (Degree):
- Insert Reliant
- [CDX] Max Depth of Cut (mm):
- 2.50
- [CWN] Cutting Width Minimum (mm):
- 0.33
- [CWX] Cutting Width Maximum (mm):
- 3.00
- [DMIN] Minimum Bore Diameter (mm):
- 35.05
- [H] Shank Height (mm):
- 23.37
- [DCON] Connection Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Left-Hand Toolholder
- Feature 2:
- Application: Internal Large Diameter Shallow Grooving
- Feature 3:
- Top Clamp Insert Holding Design
- Feature 4:
- Compatible with Right-Hand GBA32R… Inserts
- ANSI Part Number:
- KIGBAL163
- ISO Part Number:
- KIGBAL16-3
- US Stock:
- 1
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- GBA32R…
- Old Material Number:
- 8805059
- Clamp Set:
- LGBA-16RS
- Wrench (for Clamp Screw):
- FT-15
- [LF] Functional Length (mm):
- 228.60
- [LH] Head Length (mm):
- 30.00
- Product Notes:
- Right-hand Insert for Left-hand Toolholder
- [CW] Cutting Width (Decimal Inch):
- 0.0130 - 0.1181
- [CW] Cutting Width (mm):
- 0.33 - 3.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.0984
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0130
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1181
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.3799
- [H] Shank Height (Decimal Inch):
- 0.9201
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 9.0000
- [LH] Head Length (Decimal Inch):
- 1.1811
