KITGR 3525T16, Indexable Internal Threading Toolholder

KITGR 3525T16, Indexable Internal Threading Toolholder

SKU:
THC04933
|
UPC:
4960664009619
$284.05
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
KITGR 3525T16, Right-Hand, Indexable Internal Threading Toolholder with a 35.00mm Minimum Bore Diameter for Internal Threading Applications
Additional Information

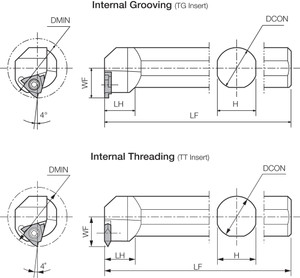

Tool Style:
KITG
Material:
Steel
Application:
Internal Threading
Hand:
Left-Hand
[CWN] Cutting Width Minimum (mm):
1.50
[CWX] Cutting Width Maximum (mm):
1.50
Thread Type:
Internal
[DMIN] Minimum Bore Diameter (mm):
45.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Large Internal Threading
Feature 3:
Clamp Screw Insert Holding Design
Feature 4:
Compatible with Left-Hand TT32L… Inserts
ANSI Part Number:
KITGL4532T22
ISO Part Number:
KITGL4532T-22
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TT43R…
Old Material Number:
8812314
Insert Screw:
GS-50
Wrench (for Insert Screw):
LW-3
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
20.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.0591
[CW] Cutting Width (mm):
1.50
[CWN] Cutting Width Minimum (Decimal Inch):
0.0591
[CWX] Cutting Width Maximum (Decimal Inch):
0.0591
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.7717
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
0.7874
