KPC3 DCLNL 2204512A Quick Change, Polygon Shank Indexable Turning Toolholder

KPC3 DCLNL 2204512A Quick Change, Polygon Shank Indexable Turning Toolholder

SKU:
THC14688
|
UPC:
4960664860128
$427.76
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
3.54 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC3 DCLNL 2204512A Quick Change, Polygon Shank, Left-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Holder for External Turning, Facing
Additional Information
Tool Style:
DCLN
Material:
Steel
Application:
External Turning|Facing
Hand:
Left-Hand
Rake:
Negative

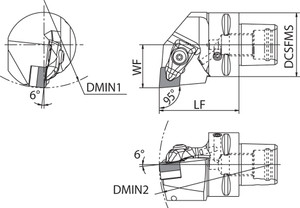

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DCSFMS] Contact Surface Diameter Machine Side (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Double Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
1,015
Feature 1:
Polygon Taper Shank with High Rigidity and High Precision
Feature 2:
Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
Feature 3:
Locational Accuracy within ±2μm
Feature 4:
Turning, Grooving , Cut-off and Threading Styles Available
Feature 5:
Coolant Through with Pressure Resistance up to 1,015psi
ANSI Part Number:
KPC3DCLNL2204512A
ISO Part Number:
KPC3-DCLNL22045-12A
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
CNMG43…, CNMA43…, CNMM43…, CNGA43…, CNGG43…, CNGM43…
Old Material Number:
8861215
Clamp:
CP-3D-S
Clamp Screw:
CS-3D-TR
Shim:
SP-441P*
Shim Screw:
M3X8
Spring:
SP-3D
Wrench (for Clamp Screw):
FT-15
Tightening Torque:
3.9 Nm
[LF] Functional Length (mm):
45.00
Product Notes 1:
*If using SX chipbreaker inserts, use shim SP-441P-C (sold separately).
Product Notes 2:
When using inserts with a corner-R (RE) greater than 3/64", additional modifications of the shim may be necessary to prevent workpiece and shim from interfering with each other.
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
1.7717
