KPC3 KGDR 220504T10 Quick Change, Polygon Shank Indexable Grooving Toolholder

KPC3 KGDR 220504T10 Quick Change, Polygon Shank Indexable Grooving Toolholder

SKU:
THT05448
|
UPC:
4960664861132
$490.14
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
3.54 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC3KGDR220504T10, Right-Hand, Quick Change, Polygon Shank, KPC-Series Grooving Holder with a 10.00mm Max Groove Depth for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KPC
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Right-Hand

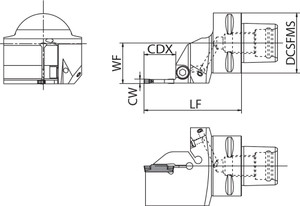

[CDX] Max Depth of Cut (mm):
10.00
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
5.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
up to 1,015
Feature 1:
Polygon taper design and dual contact between the taper and the flange face for high rigidity
Feature 2:
High precision with locational accuracy +/-2.00mm
Feature 3:
Distributes cutting forces evenly between 3 faces for enhanced rigidity and center accuracy
Feature 4:
Compatible with GDM…, GDG… Inserts
ANSI Part Number:
KPC3KGDR220504T10
ISO Part Number:
KPC3-KGDR22050-4T10
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
GDM…, GDG…
Old Material Number:
8861286
Clamp Screw:
HH5X16
Wrench (for Clamp Screw):
LW-4
Tightening Torque:
6.5 Nm
[LF] Functional Length (mm):
50.00
[CW] Cutting Width (Decimal Inch):
0.1575 - 0.1969
[CW] Cutting Width (mm):
4.00 - 5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.3937
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
1.9685
