KPC3 KTNL 2204016 Quick Change, Polygon Shank Indexable Threading Toolholder

KPC3 KTNL 2204016 Quick Change, Polygon Shank Indexable Threading Toolholder

SKU:
THC14772
|
UPC:
4960664860968
$417.73
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
3.54 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC3 KTNL 2204016, Left-Hand, Coolant-Through, Quick Change, Polygon Shank, KPC-Series Threading Holders for External Threading
Additional Information
Tool Style:
KPC
Material:
Steel
Application:
External Threading
Hand:
Left-Hand
Thread Type:
External
[DCSFMS] Contact Surface Diameter Machine Side (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
up to 1,015
Feature 1:
Polygon taper design and dual contact between the taper and the flange face for high rigidity
Feature 2:
High precision with locational accuracy +/-2.00mm
Feature 3:
Distributes cutting forces evenly between 3 faces for enhanced rigidity and center accuracy
Feature 4:
Compatible with 16EL… Inserts
ANSI Part Number:
KPC3KTNL2204016
ISO Part Number:
KPC3-KTNL22040-16
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
16EL…
Old Material Number:
8861975
Clamp Set:
CPS-5S
Shim:
TN-32
Shim Screw:
SP3X8
Wrench (for Clamp Screw):
FT-15

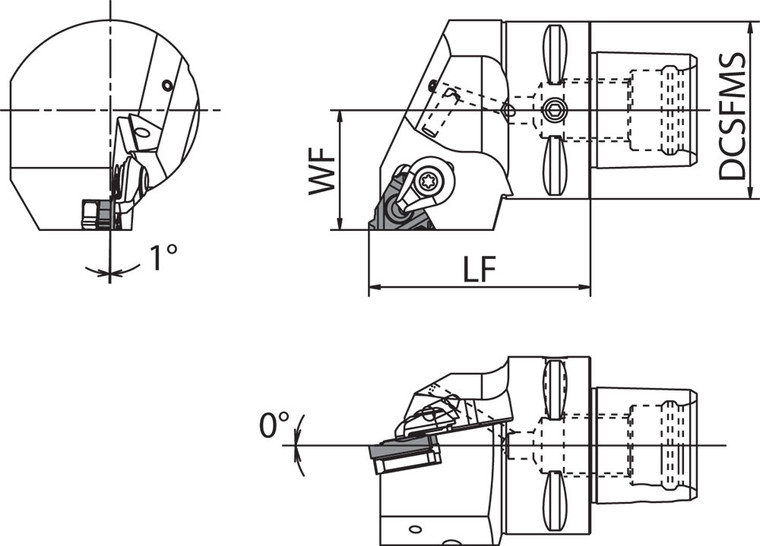

[LF] Functional Length (mm):
40.00
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
1.5748
