KPC3 SVVBN 0004816S Quick Change, Polygon Shank Indexable Turning Toolholder
$356.46
(No reviews yet)
Write a Review
KPC3 SVVBN 0004816S Quick Change, Polygon Shank Indexable Turning Toolholder
KPC3 SVVBN 0004816S Quick Change, Polygon Shank, Neutral, Positive Rake, 72.5 Degree Lead Angle, Indexable Turning Holder for Swiss, External Turning, Copying
- Tool Style:
- SVVB
- Material:
- Steel
- Application:
- Copying|External Turning
- Hand:
- Neutral
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 72.5
- Insert Shape:
- 35 Degree Diamond

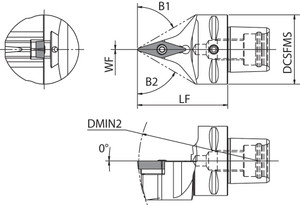

- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 32.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- 1,015
- Feature 1:
- Polygon Taper Shank with High Rigidity and High Precision
- Feature 2:
- Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
- Feature 3:
- Locational Accuracy within ±2μm
- Feature 4:
- Turning, Grooving , Cut-off and Threading Styles Available
- Feature 5:
- Compatible with VBGT33…, VBMT33…, VBGW33…, VCGT33… Inserts
- ANSI Part Number:
- KPC3SVVBN0004816S
- ISO Part Number:
- KPC3-SVVBN00048-16S
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- VBGT33…, VBMT33…, VBGW33…, VCGT33…
- Old Material Number:
- 8861360
- Insert Screw:
- SB-40125TRN
- Shim:
- SVN-32N*
- Wrench (for Insert Screw):
- FT-15
- Wrench (for Shim Screw):
- LW-4
- Tightening Torque:
- 3.9 Nm
- [LF] Functional Length (mm):
- 48.00
- Product Notes 1:
- *Use shim SVN-32S (sold separately) when using inserts with a corner-R (RE) of 0.008" or 1/64".
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.2598
- [LF] Functional Length (Decimal Inch):
- 1.8898
