KPC4 SVJBL 2705011S Quick Change, Polygon Shank Indexable Turning Toolholder

KPC4 SVJBL 2705011S Quick Change, Polygon Shank Indexable Turning Toolholder

SKU:
THC14805
|
UPC:
4960664880027
$378.75
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
3.74 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC4 SVJBL 2705011S Quick Change, Polygon Shank, Left-Hand, Positive Rake, 93 Degree Lead Angle, Indexable Turning Holder for Swiss, External Turning, Copying
Additional Information
Tool Style:
SVJB
Material:
Steel
Application:
Copying|External Turning
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
35 Degree Diamond
[DCSFMS] Contact Surface Diameter Machine Side (mm):
40.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
1,015
Feature 1:
Polygon Taper Shank with High Rigidity and High Precision
Feature 2:
Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
Feature 3:
Locational Accuracy within ±2μm
Feature 4:
Turning, Grooving , Cut-off and Threading Styles Available
Feature 5:
Compatible with VBGT22…, VBMT22…, VBGW22… Inserts
ANSI Part Number:
KPC4SVJBL2705011S
ISO Part Number:
KPC4-SVJBL27050-11S
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
VBGT22…, VBMT22…, VBGW22…
Old Material Number:
8861352
Insert Screw:
SB-2570TR
Wrench (for Insert Screw):
FT-8
Tightening Torque:
1.2 Nm (for VB..22 size inserts), 3.5Nm (for VB..33 or VC..33 size inserts)

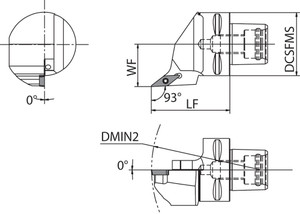

[LF] Functional Length (mm):
50.00
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.5748
[LF] Functional Length (Decimal Inch):
1.9685
