KPC5 DCLNR 3506012S Quick Change, Polygon Shank Indexable Turning Toolholder
$434.44
(No reviews yet)
Write a Review
KPC5 DCLNR 3506012S Quick Change, Polygon Shank Indexable Turning Toolholder
KPC5 DCLNR 3506012S Quick Change, Polygon Shank, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Holder for External Turning, Facing
- Tool Style:
- DCLN
- Material:
- Steel
- Application:
- External Turning|Facing
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 50.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Double Clamp
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- 1,015
- Feature 1:
- Polygon Taper Shank with High Rigidity and High Precision
- Feature 2:
- Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
- Feature 3:
- Locational Accuracy within ±2μm
- Feature 4:
- Turning, Grooving , Cut-off and Threading Styles Available
- Feature 5:
- Compatible with CNMG43…, CNMA43…, CNMM43…, CNGA43…, CNGG43…, CNGM43… Inserts
- ANSI Part Number:
- KPC5DCLNR3506012S
- ISO Part Number:
- KPC5-DCLNR35060-12S
- US Stock:
- 0
- Worldwide Stock:
- 1
- Compatible Inserts (Partial):
- CNMG43…, CNMA43…, CNMM43…, CNGA43…, CNGG43…, CNGM43…
- Old Material Number:
- 8861237
- Clamp:
- CP-3D-S
- Clamp Screw:
- CS-3D-TR
- Shim:
- DC-44*
- Shim Screw:
- SB-4085TR
- Spring:
- SP-3D
- Wrench (for Clamp Screw):
- FT-15
- Tightening Torque:
- 3.9 Nm

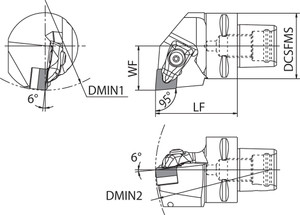

- [LF] Functional Length (mm):
- 60.00
- Product Notes 1:
- *If using SX chipbreaker inserts, use shim DC-44-C (sold separately).
- Product Notes 2:
- When using inserts with a corner-R (RE) greater than 3/64", additional modifications of the shim may be necessary to prevent workpiece and shim from interfering with each other.
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.9685
- [LF] Functional Length (Decimal Inch):
- 2.3622
