KPC5 DTGNL 3506016A Quick Change, Polygon Shank Indexable Turning Toolholder

KPC5 DTGNL 3506016A Quick Change, Polygon Shank Indexable Turning Toolholder

SKU:
THC14850
|
UPC:
4960664882274
$506.14
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC5 DTGNL 3506016A Quick Change, Polygon Shank, Left-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Holder for External Turning
Additional Information
Tool Style:
DTGN
Material:
Steel
Application:
External Turning
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
91
Insert Shape:
60 Degree Triangle

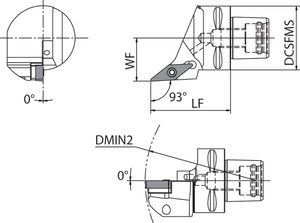

[DCSFMS] Contact Surface Diameter Machine Side (mm):
50.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Double Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
1,015
Feature 1:
Polygon Taper Shank with High Rigidity and High Precision
Feature 2:
Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
Feature 3:
Locational Accuracy within ±2μm
Feature 4:
Turning, Grooving , Cut-off and Threading Styles Available
Feature 5:
Coolant Through with Pressure Resistance up to 1,015psi
ANSI Part Number:
KPC5DTGNL3506016A
ISO Part Number:
KPC5-DTGNL35060-16A
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TNMG33…, TNMA33…, TNMM33…, TNGA33…, TNGG33…, TNGM33…, TNMX33…
Old Material Number:
8863040
Clamp:
CP-2D
Clamp Screw:
CS-2D
Shim:
DT-32
Shim Screw:
SB-3080TR
Spring:
SP-2D
Wrench (for Clamp Screw):
LW-2.5
Wrench (for Shim Screw):
FT-10 (Sold Separately
Tightening Torque:
3.9 Nm
[LF] Functional Length (mm):
60.00
Product Notes 1:
*When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim may be necessary to prevent workpiece and shim from interfering with each other.
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.9685
[LF] Functional Length (Decimal Inch):
2.3622
