KPC5 DWLNR 3506008A Quick Change, Polygon Shank Indexable Turning Toolholder

KPC5 DWLNR 3506008A Quick Change, Polygon Shank Indexable Turning Toolholder

SKU:
THC14681
|
UPC:
4960664860050
$521.33
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC5 DWLNR 3506008A Quick Change, Polygon Shank, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Holder for External Turning, Facing
Additional Information
Tool Style:
DWLN
Material:
Steel
Application:
External Turning|Facing
Hand:
Right-Hand
Rake:
Negative

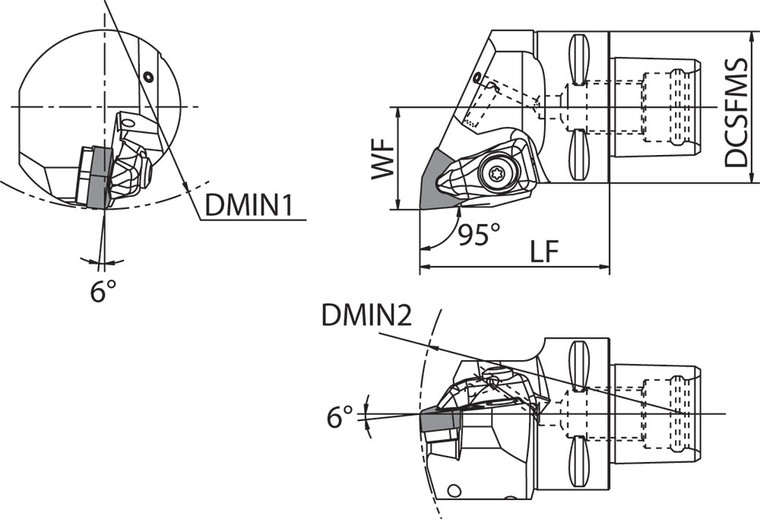

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Trigon
[DCSFMS] Contact Surface Diameter Machine Side (mm):
50.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Double Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
1,015
Feature 1:
Polygon Taper Shank with High Rigidity and High Precision
Feature 2:
Polygon Taper Design and Dual Contact between the Taper and the Flange Face for High Rigidity
Feature 3:
Locational Accuracy within ±2μm
Feature 4:
Turning, Grooving , Cut-off and Threading Styles Available
Feature 5:
Coolant Through with Pressure Resistance up to 1,015psi
ANSI Part Number:
KPC5DWLNR3506008A
ISO Part Number:
KPC5-DWLNR35060-08A
US Stock:
3
Worldwide Stock:
2
Compatible Inserts (Partial):
WNMG43…, WNMA43…, WNMM43…, WNGA43…, WNGG43…
Old Material Number:
8861209
Clamp:
CP-3D-S
Clamp Screw:
CS-3D-TR
Shim:
DW-42
Shim Screw:
SB-4085TR
Spring:
SP-3D
Wrench (for Clamp Screw):
FT-15
Tightening Torque:
3.9 Nm
[LF] Functional Length (mm):
60.00
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.9685
[LF] Functional Length (Decimal Inch):
2.3622
