KPC5 KGBAR 350602225 Quick Change, Polygon Shank Indexable Grooving Toolholder

KPC5 KGBAR 350602225 Quick Change, Polygon Shank Indexable Grooving Toolholder

SKU:
THC14763
|
UPC:
4960664860876
$657.23
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPC5KGBAR350602225, Right-Hand, Quick Change, Polygon Shank, KPC-Series Grooving Holder with a 5.50mm Max Groove Depth for External Shallow Grooving Applications
Additional Information
Tool Style:
KPC
Material:
Steel
Grooving Type:
External Grooving
Application:
External Shallow Grooving
Hand:
Right-Hand

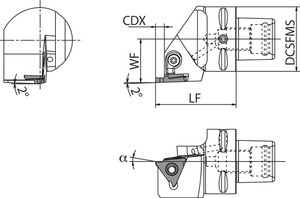

[CDX] Max Depth of Cut (mm):
5.50
[CWN] Cutting Width Minimum (mm):
0.79
[CWX] Cutting Width Maximum (mm):
5.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
50.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
up to 1,015
Feature 1:
Polygon taper design and dual contact between the taper and the flange face for high rigidity
Feature 2:
High precision with locational accuracy +/-2.00mm
Feature 3:
Distributes cutting forces evenly between 3 faces for enhanced rigidity and center accuracy
Feature 4:
Compatible with GBA43R… Inserts
ANSI Part Number:
KPC5KGBAR350602225
ISO Part Number:
KPC5-KGBAR35060-2225
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
GBA43R…
Old Material Number:
8861379
Clamp Set:
LGBA-22RS
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
60.00
[CW] Cutting Width (Decimal Inch):
0.0311 - 0.1969
[CW] Cutting Width (mm):
0.79 - 5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2165
[CWN] Cutting Width Minimum (Decimal Inch):
0.0311
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.9685
[LF] Functional Length (Decimal Inch):
2.3622
