KPKB26-3JCT, Cut-Off Blade

KPKB26-3JCT, Cut-Off Blade

SKU:
THP06798
|
UPC:
4960664932931
$189.26
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KPKB26-3JCT, Neutral, Cut-Off Blade with a 75.00mm Maximum Cut-Off Diameter for Cut-Off Applications
Additional Information
Tool Style:
KPKB-JCT
Material:
Steel
Application:
Cut-Off
Hand:
Neutral
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00

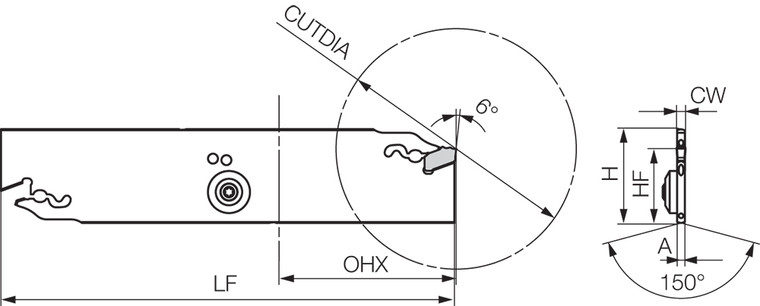

[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
2.9528
[CUTDIA] Maximum Cut-Off Diameter (mm):
75.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
1,015
Feature 1:
Neutral KPKB-JCT Series, Cut-Off Blade
Feature 2:
Maximum Cut-Off Diameter 75.00mm
Feature 3:
Compatible with KPKTB…-26JCT, KTKTB-...26 Tool Blocks and PKM30… Inserts
ANSI Part Number:
KPKB263JCT
ISO Part Number:
KPKB26-3JCT
US Stock:
8
Worldwide Stock:
10
Compatible Inserts (Partial):
PKM30…
Old Material Number:
8865585
Coolant Plug:
CCP-4
Coolant Plug Screw:
SB-4065TR
Wrench (for Insert Release):
LPW-5
Wrench (for Plug Screw):
FT-15
Tightening Torque:
3.0Nm (for Coolant Plug Screw)
Compatible Tool Block (Partial):
KPKTB…-26JCT, KTKTB-...26
[LF] Functional Length (mm):
110.00
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[LF] Functional Length (Decimal Inch):
4.3307
