KSTB SR1620TGF32, Sub-Spindle Grooving for STAR Machines

KSTB SR1620TGF32, Sub-Spindle Grooving for STAR Machines

SKU:
OTM86648
$381.38
(No reviews yet)
Width:
2.25 (in)
Height:
2.25 (in)
Depth:
3.75 (in)
Current Stock:
Adding to cart… The item has been added
Description
KSTB SR1620TGF32, Right-Hand, Indexable Sub-Spindle Grooving for STAR Machines
Additional Information
Tool Style:
KSTB
Material:
Steel
Application:
External Shallow Grooving|Small Parts Machining|Sub-Spindle
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
n/a

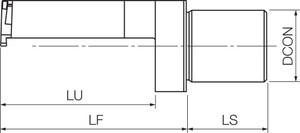

[LU] Usable Length (mm):
47.63
Insert Shape:
60 Degree Triangle
[DCON] Connection Diameter (mm):
22.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Sub-Spindle Grooving for STAR Machines
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Neutral or Left-Hand TGF32L… Inserts
Feature 5:
Neutral or Left-Hand Insert for Right-Hand Toolholder
ANSI Part Number:
KSTBSR1620TGF32
ISO Part Number:
KSTB SR16/20 TGF32
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TGF32L…
Old Material Number:
8604566
Insert Screw:
SB-4070TRS
Wrench (for Insert Screw):
FT-10
[LF] Functional Length (mm):
57.15
[LU] Usable Length (Decimal Inch):
1.8752
[DCON] Connection Diameter (Decimal Inch):
0.8661
[LF] Functional Length (Decimal Inch):
2.2500
[LS] Shank Length (mm):
27.25
[LS] Shank Length (Decimal Inch):
1.0728
