KSTB SR32JTT32, Sub-Spindle Threading for STAR Machines

KSTB SR32JTT32, Sub-Spindle Threading for STAR Machines

SKU:
OTM86647
$381.38
(No reviews yet)
Width:
2.25 (in)
Height:
2.25 (in)
Depth:
3.75 (in)
Current Stock:
Adding to cart… The item has been added
Description
KSTB SR32JTT32, Right-Hand, Indexable Sub-Spindle Threading for STAR Machines
Additional Information
Tool Style:
KSTB
Material:
Steel
Application:
External Threading|Small Parts Machining|Sub-Spindle
Hand:
Right-Hand
Rake:
Positive

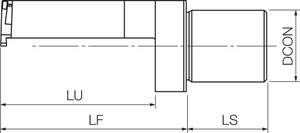

[KAPR] Tool Entering Angle (Degree):
n/a
[LU] Usable Length (mm):
53.98
Insert Shape:
60 Degree Triangle
[DCON] Connection Diameter (mm):
22.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Sub-Spindle Threading for STAR Machines
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Neutral or Left-Hand TT32… Inserts
Feature 5:
Neutral or Left-Hand Insert for Right-Hand Toolholder
ANSI Part Number:
KSTBSR32JTT32
ISO Part Number:
KSTB SR32J-TT32
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TT32…
Old Material Number:
8604565
Insert Screw:
SB-4070TRS
Wrench (for Insert Screw):
FT-10
[LF] Functional Length (mm):
66.68
[LU] Usable Length (Decimal Inch):
2.1252
[DCON] Connection Diameter (Decimal Inch):
0.8661
[LF] Functional Length (Decimal Inch):
2.6252
[LS] Shank Length (mm):
24.89
[LS] Shank Length (Decimal Inch):
0.9799
