KTGFR 1212JX16F, External Grooving Toolholder

KTGFR 1212JX16F, External Grooving Toolholder

SKU:
THC05356
|
UPC:
4960664603480
$131.90
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTGFR 1212JX16F, Right-Hand, External Grooving Toolholder for Shallow Grooving Applications
Additional Information
Tool Style:
KTGF-F
Material:
Steel
Grooving Type:
External Grooving
Application:
Shallow Grooving
Hand:
Right-Hand

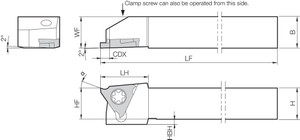

[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
0.33
[CWX] Cutting Width Maximum (mm):
2.50
[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Great for various Shallow Grooving applications
Feature 2:
Compatible with TGF32R… style inserts
ANSI Part Number:
KTGFR1212JX16F
ISO Part Number:
KTGFR1212JX-16F
US Stock:
6
Worldwide Stock:
34
Compatible Inserts (Partial):
TGF32R…
Old Material Number:
8834445
Insert Screw:
SB-4070TRW
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
18.50
[CW] Cutting Width (Decimal Inch):
0.0130 - 0.0984
[CW] Cutting Width (mm):
0.33 - 2.50
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0130
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7284
