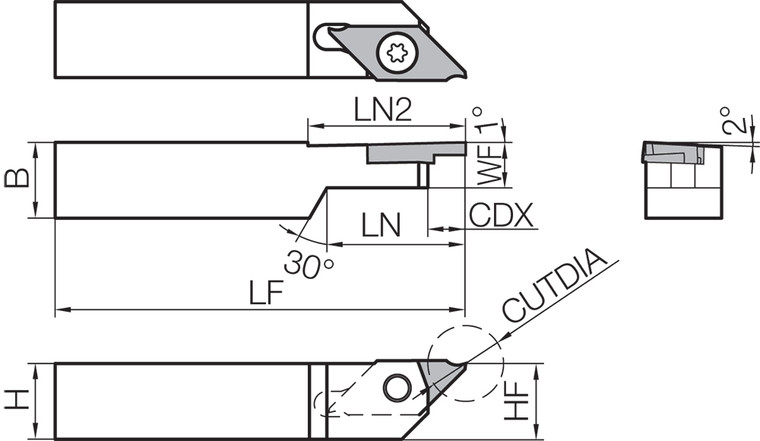

KTKFR 1010JX12SA, Cut-Off Toolholder

KTKFR 1010JX12SA, Cut-Off Toolholder

SKU:
THP06776
|
UPC:
4960664851294
$167.02
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTKFR 1010JX12SA, Right-Hand, Cut-Off Toolholder with a 10.00mm Cutting Edge Height for Cut-Off Applications
Additional Information
Tool Style:
KTKF-S
Material:
Steel
Application:
Cut-Off|Small Parts Machining
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
6.00
[CWN] Cutting Width Minimum (mm):
0.50
[CWX] Cutting Width Maximum (mm):
2.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
0.1969-0.4724
[CUTDIA] Maximum Cut-Off Diameter (mm):
5.00-12.00
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand KTKF-S Toolholder
Feature 2:
Application : Cut-Off
Feature 3:
Clamp Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand TKF12R... Inserts
ANSI Part Number:
KTKFR1010JX12SA
ISO Part Number:
KTKFR1010JX-12SA
US Stock:
0
Worldwide Stock:
13
Compatible Inserts (Partial):
TKF12R…
Old Material Number:
8860237
Insert Screw:
SB-4570TRN
Wrench (for Insert Screw):
LTW-10S
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
15.00
[CW] Cutting Width (Decimal Inch):
0.0197 - 0.0787
[CW] Cutting Width (mm):
0.50 - 2.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2362
[CWN] Cutting Width Minimum (Decimal Inch):
0.0197
[CWX] Cutting Width Maximum (Decimal Inch):
0.0787
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.5906
Series Description (PeopleSoft):
KTKF-Series
