KTKHR 1212H2S, Cut-Off Toolholder

KTKHR 1212H2S, Cut-Off Toolholder

SKU:
THP06020
|
UPC:
4960664157990
$192.08
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTKHR 1212H2S, Right-Hand, Cut-Off Toolholder with a 12.00mm Cutting Edge Height for Cut-Off Applications
Additional Information
Tool Style:
KTKH-S
Material:
Steel
Application:
Cut-Off
Hand:
Right-Hand

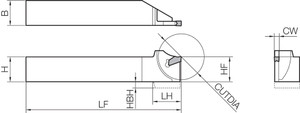

[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
1.2992
[CUTDIA] Maximum Cut-Off Diameter (mm):
33.00
[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Right-Hand KTKH-S Toolholder
Feature 2:
Application : Cut-Off
Feature 3:
Insert Holding Design
Feature 4:
Compatible with Right-Hand TKN2, TKN2.4, TKN2-P, TKR2, TKR2.4, TKR2-P Inserts
ANSI Part Number:
KTKHR1212H2S
ISO Part Number:
KTKHR1212H-2S
US Stock:
0
Worldwide Stock:
14
Compatible Inserts (Partial):
TKN2, TKN2.4, TKN2-P, TKR2, TKR2.4, TKR2-P
Old Material Number:
8806422
Wrench (for Insert Release):
LTK-5
[LF] Functional Length (mm):
100.00
[LH] Head Length (mm):
19.80
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
3.9370
[LH] Head Length (Decimal Inch):
0.7795
