KTKHR 2020K4S, Cut-Off Toolholder

KTKHR 2020K4S, Cut-Off Toolholder

SKU:
THP06180
|
UPC:
4960664158201
$217.15
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTKHR 2020K4S, Right-Hand, Cut-Off Toolholder with a 20.00mm Cutting Edge Height for Cut-Off Applications
Additional Information
Tool Style:
KTKH-S
Material:
Steel
Application:
Cut-Off
Hand:
Right-Hand

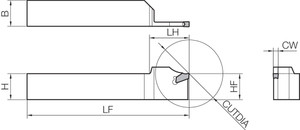

[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
2.4409
[CUTDIA] Maximum Cut-Off Diameter (mm):
62.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
mm
Feature 1:
Right-Hand KTKH-S Toolholder
Feature 2:
Application : Cut-Off
Feature 3:
Insert Holding Design
Feature 4:
Compatible with Right-Hand TKN4, TKR4 Inserts
ANSI Part Number:
KTKHR2020K4S
ISO Part Number:
KTKHR2020K-4S
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
TKN4, TKR4
Old Material Number:
8812403
Wrench (for Insert Release):
LTK-5
[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
35.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.3780
