KTNL 1216JX16F, External Threading Toolholder

KTNL 1216JX16F, External Threading Toolholder

SKU:
THC14524
|
UPC:
4960664755868
$170.37
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTNL 1216JX16F, Left-Hand, External Threading Toolholder with a 0.4724mm Shank Height and Compatible with 16EL… Inserts
Additional Information
Tool Style:
KTN
Material:
Steel
Application:
External Threading
Hand:
Left-Hand
Thread Type:
External

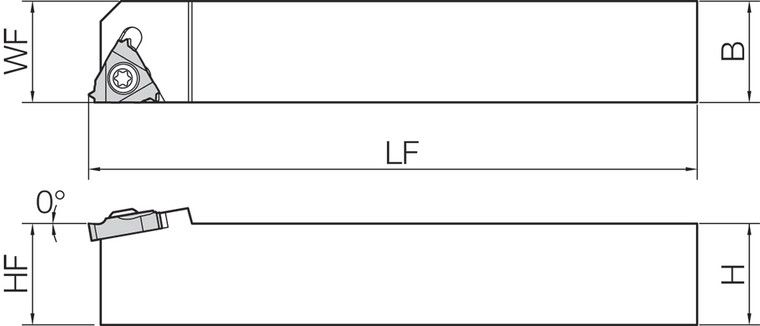

[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand 16EL… Inserts
ANSI Part Number:
KTNL1216JX16F
ISO Part Number:
KTNL1216JX-16F
US Stock:
0
Worldwide Stock:
4
Compatible Inserts (Partial):
16EL…
Old Material Number:
8845167
Insert Screw:
SB-3.5TR
Wrench (for Insert Screw):
LTW-15S
[LF] Functional Length (mm):
120.00
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.7244
