KTNL 2525M16, External Threading Toolholder

KTNL 2525M16, External Threading Toolholder

SKU:
THC03961
|
UPC:
4960664126569
$208.83
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTNL 2525M16, Left-Hand, External Threading Toolholder with a 0.9843mm Shank Height and Compatible with 16EL… Inserts
Additional Information
Tool Style:
KTN
Material:
Steel
Application:
External Threading
Hand:
Left-Hand
Thread Type:
External

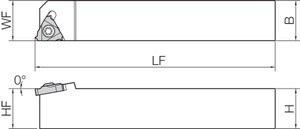

[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand 16EL… Inserts
ANSI Part Number:
KTNL2525M16
ISO Part Number:
KTNL2525M-16
US Stock:
1
Worldwide Stock:
15
Compatible Inserts (Partial):
16EL…
Old Material Number:
8812417
Clamp Set:
CPS-5S
Shim:
TN-32
Shim Screw:
SP3X8
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
25.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
0.9843
