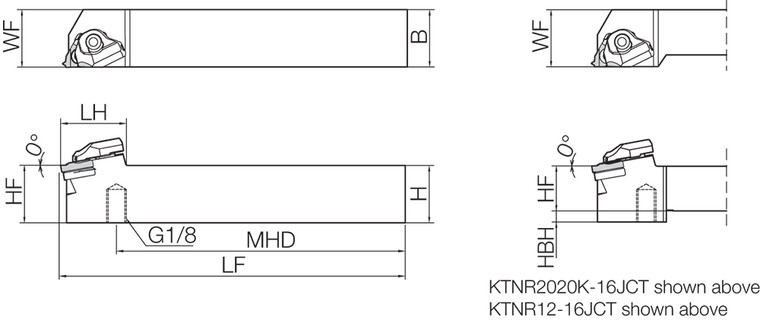

KTNR 2525M16JCT, Coolant-Through External Threading Toolholder
$381.63
(No reviews yet)
Write a Review
KTNR 2525M16JCT, Coolant-Through External Threading Toolholder
KTNR 2525M16JCT, Coolant Through, Right-Hand, External Threading Toolholder with a 0.9843mm Shank Height and Compatible with 16ER… Inserts
- Tool Style:
- KTN-JCT
- Material:
- Steel
- Application:
- External Threading
- Hand:
- Right-Hand
- Thread Type:
- External
- [H] Shank Height (mm):
- 25.00
- [B] Shank Width (mm):
- 25.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Clamp Set
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- up to 2,175
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application : External Threading
- Feature 3:
- Clamp Insert Holding Design
- Feature 4:
- Compatible with Right-Hand 16ER… Inserts
- ANSI Part Number:
- KTNR2525M16JCT
- ISO Part Number:
- KTNR2525M-16JCT
- US Stock:
- 0
- Worldwide Stock:
- 6
- Compatible Inserts (Partial):
- 16ER…
- Old Material Number:
- 8860669
- Clamp Set:
- CPS-5S-R-JCT
- Shim:
- TN-32
- Shim Screw:
- SP3X8
- Pipe Connection (with O-Ring):
- FP-12*
- Wrench (for Clamp Screw):
- FT-15
- [LF] Functional Length (mm):
- 150.00
- Product Notes 1:
- *O-ring SS-035 for pipe connection is also available but sold separately.
- [H] Shank Height (Decimal Inch):
- 0.9843
- [B] Shank Width (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 5.9055
- Series Description (PeopleSoft):
- Lay-down JCT Threading
- Series Description:
- Lay-down JCT Threading
