KTNSR 2020K16, External Threading Toolholder

KTNSR 2020K16, External Threading Toolholder

SKU:
THC03976
|
UPC:
4960664139101
$200.41
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTNSR 2020K16, Right-Hand, External Threading Toolholder with a 0.7874mm Shank Height and Compatible with 16ER… Inserts
Additional Information
Tool Style:
KTNSR
Material:
Steel
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand 16ER… Inserts
ANSI Part Number:
KTNSR2020K16
ISO Part Number:
KTNSR2020K-16
US Stock:
3
Worldwide Stock:
0
Compatible Inserts (Partial):
16ER…
Old Material Number:
8806445
Clamp Set:
CPS-5S
Shim:
TN-32
Shim Screw:
SP3X8
Wrench (for Clamp Screw):
FT-15

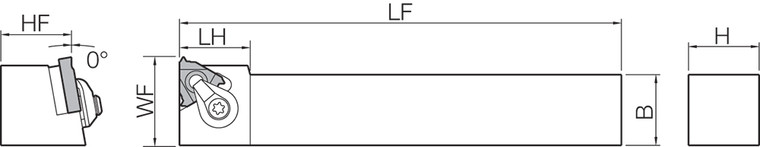

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
20.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
0.7874
