KTTR 1616H16, External Threading Toolholder

KTTR 1616H16, External Threading Toolholder

SKU:
THC05350
|
UPC:
4960664011643
$130.29
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTTR 1616H16, Right-Hand, External Threading Toolholder with a 0.6299mm Shank Height and Compatible with TT32R… Inserts
Additional Information
Tool Style:
KTT
Material:
Steel
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External
[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand TT32R… Inserts
ANSI Part Number:
KTTR1616H16
ISO Part Number:
KTTR1616H-16
US Stock:
0
Worldwide Stock:
11
Compatible Inserts (Partial):
TT32R…
Old Material Number:
8812429
Insert Screw:
SB-4070TRS
Wrench (for Insert Screw):
FT-10

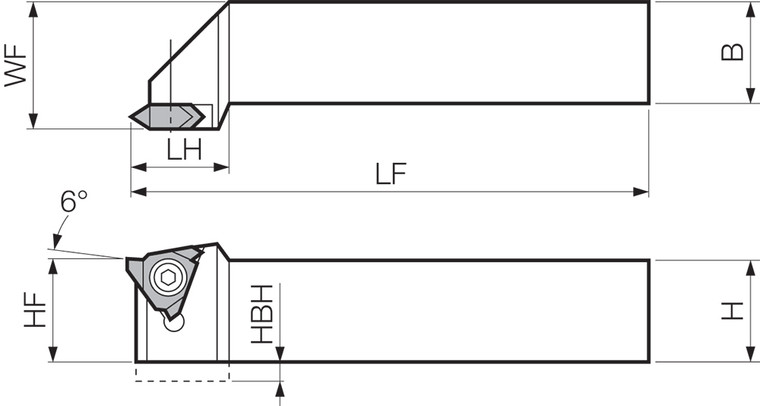

[LF] Functional Length (mm):
100.00
[LH] Head Length (mm):
18.00
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
3.9370
[LH] Head Length (Decimal Inch):
0.7087
