KTTXR 1212F16F, External Threading Toolholder

KTTXR 1212F16F, External Threading Toolholder

SKU:
THC05304
|
UPC:
4960664442423
$130.29
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTTXR 1212F16F, Right-Hand, External Threading Toolholder with a 0.4724mm Shank Height and Compatible with TTX32ER… Inserts
Additional Information
Tool Style:
KTTXR
Material:
Steel
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External
[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand TTX32ER… Inserts
ANSI Part Number:
KTTXR1212F16F
ISO Part Number:
KTTXR1212F-16F
US Stock:
0
Worldwide Stock:
4
Compatible Inserts (Partial):
TTX32R…
Old Material Number:
8820915
Insert Screw:
SB-4070TRW
Wrench (for Insert Screw):
FT-8

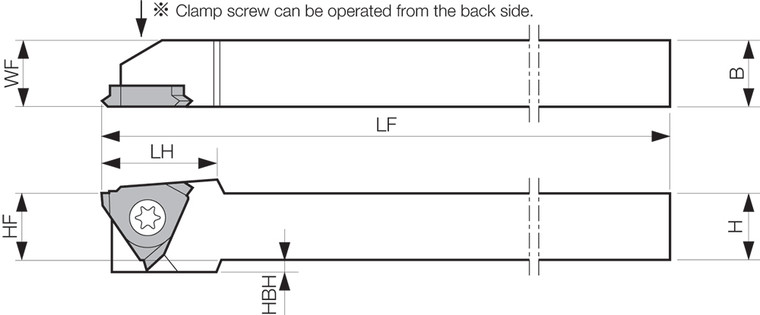

[LF] Functional Length (mm):
85.00
[LH] Head Length (mm):
17.60
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
3.3465
[LH] Head Length (Decimal Inch):
0.6929
