KTTXR 1616JX16F, External Threading Toolholder

KTTXR 1616JX16F, External Threading Toolholder

SKU:
THC05306
|
UPC:
4960664603442
$150.81
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KTTXR 1616JX16F, Right-Hand, External Threading Toolholder with a 0.6299mm Shank Height and Compatible with TTX32ER… Inserts
Additional Information
Tool Style:
KTTXR
Material:
Steel
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External

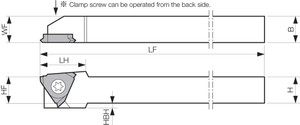

[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application : External Threading
Feature 3:
Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand TTX32ER… Inserts
ANSI Part Number:
KTTXR1616JX16F
ISO Part Number:
KTTXR1616JX-16F
US Stock:
0
Worldwide Stock:
37
Compatible Inserts (Partial):
TTX32R…
Old Material Number:
8837423
Insert Screw:
SB-4070TRW
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
17.60
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.6929
