LCMT 030203GME PR1225 Grade PVD Carbide, Indexable Drilling Insert
$18.35
(No reviews yet)
Write a Review
LCMT 030203GME PR1225 Grade PVD Carbide, Indexable Drilling Insert
LCMT 030203GME PR1225 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel, (P) Carbon/Alloy Steel, (P) Tool Steel, (K) Cast Iron (DRV Magic Drill)
- Tool Style:
- LCMT
- Insert Size:
- 030203
- Chipbreaker:
- GM-E
- Insert Grade:
- PR1225
- Material:
- Carbide
- Coating Process:
- PVD

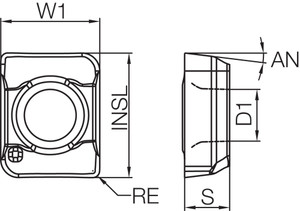

- [S] Thickness (mm):
- 1.98
- [RE] Corner Radius (mm):
- 0.30
- [INSL] Insert Length (mm):
- 5.54
- Application:
- Drilling
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- n/a
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- Irregular
- Number of Cutting Edges:
- 2
- Insert Holding Method:
- Screw
- Feature 1:
- Outboard insert for drilling
- Feature 2:
- General purpose chipbreaker for stable deep-hole drilling
- Feature 3:
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Feature 4:
- Application: Light interrupted to interrupted cutting of stainless steel
- ANSI Part Number:
- LCMT030203GMEPR1225
- ISO Part Number:
- LCMT030203-GM-E
- US Stock:
- 20
- Worldwide Stock:
- 1410
- Old Material Number:
- 8861043
- Compatible Toolholder (Partial):
- S..-DRV…-03
- [S] Thickness:
- 5/64"
- [RE] Corner Radius:
- 0.012"
- [INSL] Insert Length (Decimal Inch):
- 0.2181
