LOGU 030310ERGM PR1835 Grade PVD Carbide, Indexable Milling Insert

LOGU 030310ERGM PR1835 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLU00097
$20.77
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
LOGU 030310ERGM PR1835 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel
Additional Information
Tool Style:
LOGU
Insert Size:
030310
Chipbreaker:
ER-GM
Insert Grade:
PR1835
Material:
Carbide
Coating Process:
PVD

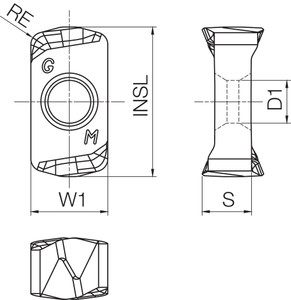

[S] Thickness:
0.156"
[S] Thickness (mm):
3.96
[RE] Corner Radius:
0.039"
[RE] Corner Radius (mm):
1.00
[INSL] Insert Length (Decimal Inch):
0.4685
[INSL] Insert Length (mm):
11.90
Application:
Facing|Helical Milling|High Feed|Plunging|Pocketing|Ramping|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Insert Shape:
90 Degree Rectangle
Number of Cutting Edges:
4
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MFH-Mini Milling Insert for Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Feature 2:
Honed Edge / General Purpose with 4 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent stability oriented grade for steel and stainless steel milling applications
ANSI Part Number:
LOGU030310ERGMPR1835
ISO Part Number:
LOGU030310ER-GM
Compatible Toolholder (Partial):
MFH…-03-…
