LOGU 120616ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

LOGU 120616ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00013
$34.95
(No reviews yet)
Width:
1.75 (in)
Height:
0.58 (in)
Depth:
4.15 (in)
Current Stock:
Adding to cart… The item has been added
Description
LOGU 120616ERGM PR1825 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
LOGU
Insert Size:
1206
Chipbreaker:
ER-GM
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD
[S] Thickness:
0.391"
[S] Thickness (mm):
9.92
[RE] Corner Radius:
0.063"
[RE] Corner Radius (mm):
1.6
[INSL] Insert Length (Decimal Inch):
0.5228
[INSL] Insert Length (mm):
13.28
Application:
Facing|Helical Milling|High Feed|Plunging|Pocketing|Ramping|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
90 Degree Rectangle
Number of Cutting Edges:
4
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw
ANSI Part Number:
LOGU120616ERGMPR1825
ISO Part Number:
LOGU120616ER-GM

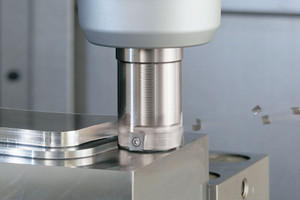

Compatible Toolholder (Partial):
MA90…-12-…
