LOGU 120630ERSM CA6535 Grade CVD Carbide, Indexable Milling Insert

LOGU 120630ERSM CA6535 Grade CVD Carbide, Indexable Milling Insert

SKU:
TMA40028
$34.95
(No reviews yet)
Width:
1.75 (in)
Height:
0.58 (in)
Depth:
4.15 (in)
Current Stock:
Adding to cart… The item has been added
Description

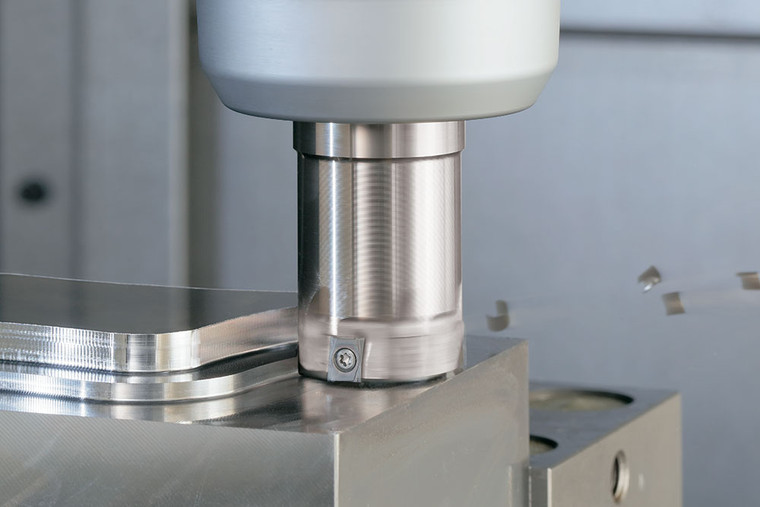

LOGU 120630ERSM CA6535 Grade CVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy
Additional Information
Tool Style:
LOGU
Insert Size:
1206
Chipbreaker:
ER-SM
Insert Grade:
CA6535
Material:
Carbide
Coating Process:
CVD
[S] Thickness:
0.382"
[S] Thickness (mm):
9.69
[RE] Corner Radius:
0.118"
[RE] Corner Radius (mm):
3.0
[INSL] Insert Length (Decimal Inch):
0.5228
[INSL] Insert Length (mm):
13.28
Application:
Facing|Helical Milling|High Feed|Plunging|Pocketing|Ramping|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Insert Shape:
90 Degree Rectangle
Number of Cutting Edges:
4
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw
ANSI Part Number:
LOGU120630ERSMCA6535
ISO Part Number:
LOGU120630ER-SM
Compatible Toolholder (Partial):
MA90…-12-…
