LOGU 2216PAERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

LOGU 2216PAERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00116
$48.67
(No reviews yet)
Width:
2.44 (in)
Height:
0.67 (in)
Depth:
5.12 (in)
Current Stock:
Adding to cart… The item has been added
Description
LOGU 2216PAERGM PR1825 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
LOGU
Insert Size:
2216
Chipbreaker:
ER-GM
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD

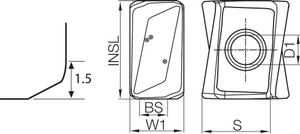

[S] Thickness:
0.665"
[S] Thickness (mm):
16.90
[INSL] Insert Length (Decimal Inch):
0.8976
[INSL] Insert Length (mm):
22.80
Application:
Facing|Helical Milling|High Feed|Plunging|Pocketing|Ramping|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
90 Degree Rectangle
Number of Cutting Edges:
4
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MFLN Milling Insert for Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Feature 2:
Honed Edge / General Purpose with 4 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent wear resistance oriented grade for steel milling applications
ANSI Part Number:
LOGU2216PAERGMPR1825
ISO Part Number:
LOGU2216PAER-GM
Compatible Toolholder (Partial):
MFLN90…
