MCSE 11030D 30 Degree, Chamfer End Mill
MCSE 11030D 1-Flute, 30 Degree, Standard Length Shank, Chamfer End Mill with a 10.00mm Minimum and 30.00mm Maximum Cutting Diameter for Chamfering, Back Chamfering, V-Shape Slotting, Countersinking Applications
- Tool Style:
- MCSE
- Material:
- Steel
- Application:
- Back Chamfering|Chamfering|Countersinking|V-Shape Slotting
- Hand:
- Right-Hand

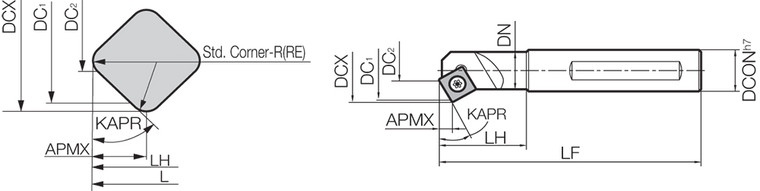

- [KAPR] Tool Entering Angle (Degree):
- 30
- [DCX] Cutting Diameter Maximum (mm):
- 30.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2480
- [APMX] Maximum Depth of Cut (mm):
- 6.30
- Number of Inserts:
- 1
- Number of Flutes:
- 1
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- For Chamfering, Back Chamfering, V-Shape Slotting, Countersinking Applications
- Feature 2:
- Compatible with (1) SEKW421TN, SEKW422TN, SEKW421FN, SEKW422FN, SEMT421C style inserts
- ANSI Part Number:
- MCSE11030D
- ISO Part Number:
- MCSE110-30D
- US Stock:
- 0
- Worldwide Stock:
- 1
- Compatible Inserts (Partial):
- SEKW421TN, SEKW422TN, SEKW421FN, SEKW422FN, SEMT421C
- Old Material Number:
- 8812459
- Insert Screw:
- SB-5090TR
- Wrench (for Insert Screw):
- LTW-20
- [LF] Functional Length (mm):
- 120.00
- [LH] Head Length (mm):
- 40.00
- [DC] Cutting Diameter (Decimal Inch):
- 1.1811 - 1.1811
- [DC] Cutting Diameter (mm):
- 30.00 - 30.00
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.1811
- [DCON] Connection Diameter (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.7244
- [LH] Head Length (Decimal Inch):
- 1.5748
