MEAS 050R134TM Metric Bore Diameter, 90 Degree Face Mill
$813.29
(No reviews yet)
Write a Review
MEAS 050R134TM Metric Bore Diameter, 90 Degree Face Mill
MEAS 050R134TM Metric Bore Diameter, Standard Pitch, 4 Flute, 90 Degree Face Mill with a 50.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Contouring, Pocketing, Helical Milling, Plunging Applications
- Tool Style:
- MEAS
- Material:
- Steel
- Application:
- Contouring|Facing|Helical Milling|Plunging|Pocketing|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand

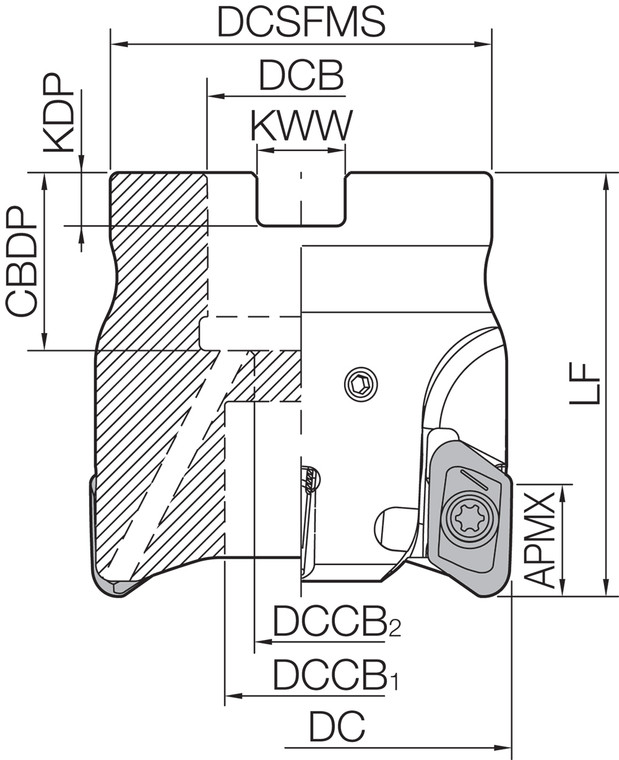

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 50.00
- [DCX] Cutting Diameter Maximum (mm):
- 50.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.4724
- [APMX] Maximum Depth of Cut (mm):
- 12.00
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 4
- Number of Flutes:
- 4
- Bore Diameter (Inch/Metric):
- Metric
- [DCB] Connection Bore Diameter (mm):
- 22.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 45.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Shouldering, Facing, Slotting, Ramping, Contouring, Pocketing, Helical Milling, Plunging
- Feature 3:
- High efficiency milling cutters for aluminum machining
- Feature 4:
- Grooved insert pockets provide secure clamping to ensure stable, high speed machining
- Feature 5:
- Sharp cutting edge with low cutting force design
- ANSI Part Number:
- MEAS050R134TM
- ISO Part Number:
- MEAS050R-13-4T-M
- US Stock:
- 5
- Worldwide Stock:
- 16
- Compatible Inserts (Partial):
- KCGT…FR-AL
- Old Material Number:
- 8863879
- Insert Screw:
- SB-4090TRP
- Arbor Bolt:
- HH10X30H
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 50.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.9685
- [DC] Cutting Diameter (mm):
- 50.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.9685
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.9685
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.8661
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.7717
- [LF] Functional Length (Decimal Inch):
- 1.9685
