MEC 063R176T Inch Bore Diameter, 90 Degree Face Mill
MEC 063R176T Inch Bore Diameter, Fine Pitch, 6 Flute, 90 Degree Face Mill with a 63.00mm Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling, Plunging Applications
- Tool Style:
- MEC
- Material:
- Steel
- Application:
- Facing|Helical Milling|Plunging|Shouldering|Slotting
- Hand:
- Right-Hand

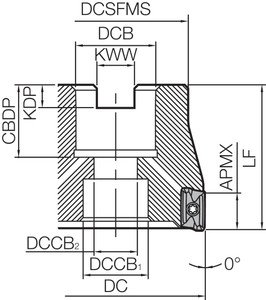

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 63.00
- [DCX] Cutting Diameter Maximum (mm):
- 63.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.6181
- [APMX] Maximum Depth of Cut (mm):
- 15.70
- Cutter Pitch:
- Fine Pitch
- Number of Inserts:
- 6
- Number of Flutes:
- 6
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 25.40
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 40.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Shouldering, Facing, Slotting, Helical Milling, Plunging
- Feature 3:
- Low cutting force and reduced chattering for high-efficiency milling
- Feature 4:
- Great for various milling applications
- Feature 5:
- CA6535 and PR1535 insert grades available for difficult-to-cut material
- ANSI Part Number:
- MEC063R176T
- ISO Part Number:
- MEC063R-17-6T
- US Stock:
- 0
- Worldwide Stock:
- 4
- Compatible Inserts (Partial):
- BDMT1704…ER-JT, BDMT1704…ER-JS, BDGT1704…FR-JA, BDMT1704…FR
- Old Material Number:
- 8832577
- Insert Screw:
- SB-4070TRN
- Arbor Bolt:
- HH12X35H (Sold Separately)*
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-15
- Wrench (for Arbor Bolt):
- LW-8 (Sold Separately)*
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 50.00
- Product Notes 1:
- *If through-spindle coolant is required, order arbor bolt HH12X35H and LW-8 wrench (sold separately).
- Product Notes 2:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 2.4803
- [DC] Cutting Diameter (mm):
- 63.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 2.4803
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 2.4803
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.0000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.5748
- [LF] Functional Length (Decimal Inch):
- 1.9685
