MEC 13S1211 Standard Length Shank, 90 Degree End Mill
$226.20
(No reviews yet)
Write a Review
MEC 13S1211 Standard Length Shank, 90 Degree End Mill
MEC 13S1211 Standard Length, Cylindrical Shank, 1 Flute, 90 Degree End Mill with a 13.00mm Cutting Diameter for Shouldering, Facing, Slotting Applications
- Tool Style:
- MEC
- Material:
- Steel
- Application:
- Facing|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 13.00
- [DCX] Cutting Diameter Maximum (mm):
- 13.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.3937
- [APMX] Maximum Depth of Cut (mm):
- 10.00
- Number of Inserts:
- 1
- Number of Flutes:
- 1
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 12.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand, Standard Length, 90 Lead Angle End Mill
- Feature 2:
- Shouldering, Facing, Slotting Applications
- Feature 3:
- Compatible with BDMT1103…ER-JT, BDMT1103…ER-JS Inserts
- ANSI Part Number:
- MEC13S1211
- ISO Part Number:
- MEC13-S12-11
- US Stock:
- 0
- Worldwide Stock:
- 1
- Compatible Inserts (Partial):
- BDMT1103…ER-JT, BDMT1103…ER-JS
- Old Material Number:
- 8826224
- Insert Screw:
- SB-2545TR
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-8
- Tightening Torque:
- 1.2 Nm (for Insert Screw)

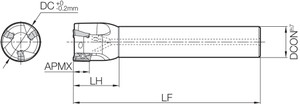

- [LF] Functional Length (mm):
- 80.00
- [LH] Head Length (mm):
- 20.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 0.5118
- [DC] Cutting Diameter (mm):
- 13.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.5118
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.5118
- [DCON] Connection Diameter (Decimal Inch):
- 0.4724
- [LF] Functional Length (Decimal Inch):
- 3.1496
- [LH] Head Length (Decimal Inch):
- 0.7874
