MEC 20S2017011T Long Length Shank, 90 Degree End Mill

MEC 20S2017011T Long Length Shank, 90 Degree End Mill

SKU:
THN03301
|
UPC:
4960664460991
$407.75
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEC 20S2017011T Long Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 20.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
Additional Information
Tool Style:
MEC
Material:
Steel
Application:
Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
20.00
[DCX] Cutting Diameter Maximum (mm):
20.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.3937
[APMX] Maximum Depth of Cut (mm):
10.00
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Long Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
20.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand, Long Length, 90 Lead Angle End Mill
Feature 2:
Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
Feature 3:
Compatible with BDMT11T3…ER-JT, BDMT11T3…ER-JS, BDGT11T3…FR-JA BDGT11T3…FR…, BDMT11T3…FR Inserts
ANSI Part Number:
MEC20S2017011T
ISO Part Number:
MEC20-S20-170-11T
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
BDMT11T3…ER-JT, BDMT11T3…ER-JS, BDGT11T3…FR-JA BDGT11T3…FR…, BDMT11T3…FR
Old Material Number:
8828397
Insert Screw:
SB-2555TRG
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTM-8
Tightening Torque:
1.2 Nm (for Insert Screw)

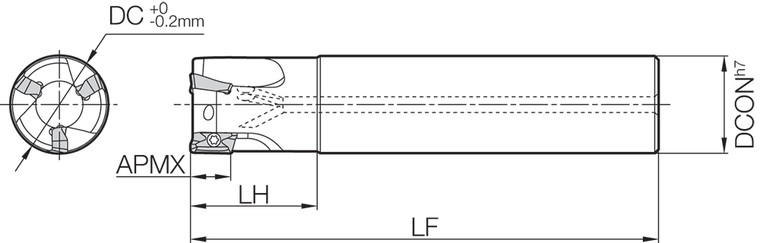

[LF] Functional Length (mm):
170.00
[LH] Head Length (mm):
60.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
0.7874
[DC] Cutting Diameter (mm):
20.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.7874
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7874
[DCON] Connection Diameter (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
6.6929
[LH] Head Length (Decimal Inch):
2.3622
