MEC 32M16173T, Modular Head End Mill
$401.80
(No reviews yet)
Write a Review
MEC 32M16173T, Modular Head End Mill
MEC 32M16173T 90 Degree Lead, 3 Flute, Coolant-Through Modular Head End Mill with a 32.00mm Cutting Diameter for Shouldering, Slotting, Facing, Plunging, Ramping, Helical Milling Applications

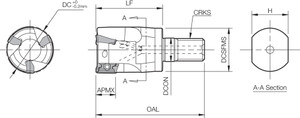

- Tool Style:
- MEC
- Material:
- Steel
- Application:
- Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 32.00
- [DCX] Cutting Diameter Maximum (mm):
- 32.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.6181
- [APMX] Maximum Depth of Cut (mm):
- 15.70
- Number of Inserts:
- 3
- Number of Flutes:
- 3
- [H] Shank Height (mm):
- 24.00
- Shank Type:
- Modular Connection
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 17.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 30.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Low cutting force and reduced chattering for high-efficiency milling
- Feature 2:
- Great for various milling applications
- Feature 3:
- New PDL025 grade for machining aluminum
- Feature 4:
- Compatible with (3) BDMT1704…, BDGT1704… style inserts
- ANSI Part Number:
- MEC32M16173T
- ISO Part Number:
- MEC32-M16-17-3T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- BDMT1704…, BDGT1704…
- Old Material Number:
- 8837968
- Insert Screw:
- SB-4070TRN
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 40.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.2598
- [DC] Cutting Diameter (mm):
- 32.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.2598
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.2598
- [H] Shank Height (Decimal Inch):
- 0.9449
- [DCON] Connection Diameter (Decimal Inch):
- 0.6693
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.1811
- [LF] Functional Length (Decimal Inch):
- 1.5748
- [OAL] Overall Length (mm):
- 63.00
- [OAL] Overall Length (Decimal Inch):
- 2.4803
