MECH 1000W1001142T (MEC Series), Standard Length, Helical End Mill
$499.81
(No reviews yet)
Write a Review
MECH 1000W1001142T (MEC Series), Standard Length, Helical End Mill
MECH 1000W1001142T (MEC Series), Standard Length, Helical End Mill with a 1.0000" Cutting Diameter for Shouldering, Slotting, Facing Applications
- Tool Style:
- MECH
- Material:
- Steel
- Application:
- Facing|Shouldering|Slotting
- Hand:
- Right-Hand

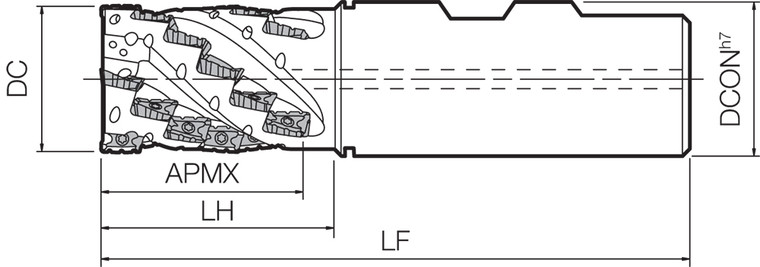

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 25.40
- [DCX] Cutting Diameter Maximum (mm):
- 25.40
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 1.4567
- [APMX] Maximum Depth of Cut (mm):
- 37.00
- Number of Inserts:
- 8
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Low cutting force and reduced chattering for high-efficiency milling
- Feature 2:
- Great for various milling applications
- Feature 3:
- Compatible with: BDMT11T308ER-N2, BDMT11T308ER-N3 style inserts
- ANSI Part Number:
- MECH1000W1001142T
- ISO Part Number:
- MECH1000W100-11-4-2T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- BDMT11T308ER-N2, BDMT11T308ER-N3
- Old Material Number:
- 8824599
- Insert Screw:
- SB-2555TRG
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-8
- [LF] Functional Length (mm):
- 105.92
- [LH] Head Length (mm):
- 46.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.0000
- [DC] Cutting Diameter (mm):
- 25.40
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.0000
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 4.1701
- [LH] Head Length (Decimal Inch):
- 1.8110
