MECX 1500R0710T Inch Bore Diameter, 90 Degree Face Mill
$651.07
(No reviews yet)
Write a Review
MECX 1500R0710T Inch Bore Diameter, 90 Degree Face Mill
MECX 1500R0710T Inch Bore Diameter, Standard Pitch, 10 Flute, 90 Degree Face Mill with a 1.5000" Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling Applications
- Tool Style:
- MECX
- Material:
- Steel
- Application:
- Facing|Helical Milling|Shouldering|Slotting
- Hand:
- Right-Hand

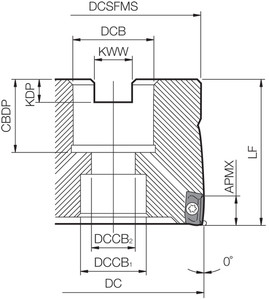

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 38.10
- [DCX] Cutting Diameter Maximum (mm):
- 38.10
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2362
- [APMX] Maximum Depth of Cut (mm):
- 6.00
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 10
- Number of Flutes:
- 10
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 19.05
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 38.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Shouldering, Facing, Slotting, Helical Milling
- Feature 3:
- Extra-fine pitch increases machining efficiency with low cutting forces which make the MECX ideal for lower horsepower machines
- Feature 4:
- Compatible with (10) BDMT0703…ER-JT, BDMT0703…ER-JS style inserts
- ANSI Part Number:
- MECX1500R0710T
- ISO Part Number:
- MECX1500R-07-10T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- BDMT0703…ER-JT, BDMT0703…ER-JS
- Old Material Number:
- 8821901
- Insert Screw:
- SB-2042TRG
- Arbor Bolt:
- HH3/8-1.25H
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-6
- [LF] Functional Length (mm):
- 40.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.5000
- [DC] Cutting Diameter (mm):
- 38.10
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.5000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.5000
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.7500
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.4961
- [LF] Functional Length (Decimal Inch):
- 1.5748
