MEF 17S16 Standard Length Shank, 89 Degree End Mill

MEF 17S16 Standard Length Shank, 89 Degree End Mill

SKU:
THN02008
|
UPC:
4960664220298
$307.98
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEF 17S16 Standard Length, Cylindrical Shank, 2 Flute, 89 Degree End Mill with a 7.30mm Cutting Diameter for Bolt Countersinking (M10), Shouldering, Facing Applications
Additional Information
Tool Style:
MEF
Material:
Steel
Application:
Bolt Countersinking|Facing|Shouldering
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
89
[DCN] Cutting Diameter Minimum (mm):
7.30
[DCX] Cutting Diameter Maximum (mm):
17.50
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand, Standard Length, 89 Lead Angle End Mill
Feature 2:
Bolt Countersinking (M10), Shouldering, Facing Applications
Feature 3:
Compatible with SPMT060204E-Z, SPMT060208E-Z Inserts
ANSI Part Number:
MEF17S16
ISO Part Number:
MEF17-S16
US Stock:
1
Worldwide Stock:
0
Compatible Inserts (Partial):
SPMT060204E-Z, SPMT060208E-Z
Old Material Number:
8809670
Insert Screw:
SB-2260TR
Wrench (for Insert Screw):
DT-7

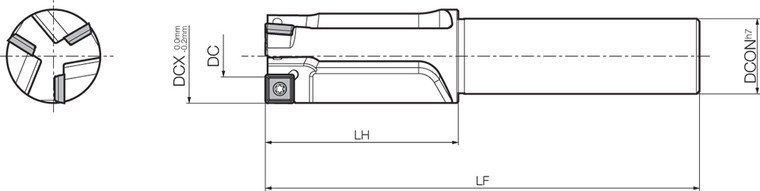

[LF] Functional Length (mm):
115.00
[LH] Head Length (mm):
35.00
[DC] Cutting Diameter (Decimal Inch):
0.2874 - 0.6890
[DC] Cutting Diameter (mm):
7.30 - 17.50
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.2874
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.6890
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.5276
[LH] Head Length (Decimal Inch):
1.3780
