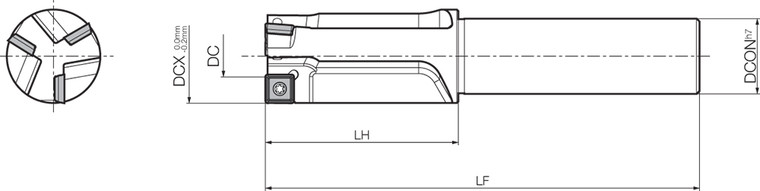

MEF 26S25 Standard Length Shank, 89 Degree End Mill
$330.71
(No reviews yet)
Write a Review
MEF 26S25 Standard Length Shank, 89 Degree End Mill
MEF 26S25 Standard Length, Cylindrical Shank, 3 Flute, 89 Degree End Mill with a 9.80mm Cutting Diameter for Bolt Countersinking (M16), Shouldering, Facing Applications
- Tool Style:
- MEF
- Material:
- Steel
- Application:
- Bolt Countersinking|Facing|Shouldering
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 89
- [DCN] Cutting Diameter Minimum (mm):
- 9.80
- [DCX] Cutting Diameter Maximum (mm):
- 26.00
- Number of Inserts:
- 3
- Number of Flutes:
- 3
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 25.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand, Standard Length, 89 Lead Angle End Mill
- Feature 2:
- Bolt Countersinking (M16), Shouldering, Facing Applications
- Feature 3:
- Compatible with SPMT090304E-Z, SPMT090308E-Z Inserts
- ANSI Part Number:
- MEF26S25
- ISO Part Number:
- MEF26-S25
- US Stock:
- 0
- Worldwide Stock:
- 5
- Compatible Inserts (Partial):
- SPMT090304E-Z, SPMT090308E-Z
- Old Material Number:
- 8812542
- Insert Screw:
- SB-3080TR
- Wrench (for Insert Screw):
- DT-10
- [LF] Functional Length (mm):
- 132.00
- [LH] Head Length (mm):
- 52.00
- [DC] Cutting Diameter (Decimal Inch):
- 0.3858 - 1.0236
- [DC] Cutting Diameter (mm):
- 9.80 - 26.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.3858
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.0236
- [DCON] Connection Diameter (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 5.1969
- [LH] Head Length (Decimal Inch):
- 2.0473
