MEV 20M10062T, Modular Head End Mill

MEV 20M10062T, Modular Head End Mill

SKU:
THN08496
|
UPC:
4960664914227
$277.95
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEV 20M10062T 90 Degree Lead, 2 Flute, Coolant-Through Modular Head End Mill with a 20.00mm Cutting Diameter for Shouldering, Slotting, Ramping Applications
Additional Information
Tool Style:
MEV
Material:
Steel
Application:
Ramping|Shouldering|Slotting
Hand:
Right-Hand

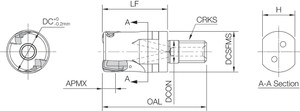

[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
20.00
[DCX] Cutting Diameter Maximum (mm):
20.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.2362
[APMX] Maximum Depth of Cut (mm):
6.00
Number of Inserts:
2
Number of Flutes:
2
[H] Shank Height (mm):
15.00
Shank Type:
Modular Connection
Weldon Flat:
No
[DCON] Connection Diameter (mm):
10.50
[DCSFMS] Contact Surface Diameter Machine Side (mm):
18.70
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
High Performance, Economical, Multi-function Milling Cutters
Feature 2:
Low Cutting Forces and Higher Rigidity for Excellent Chatter Resistance
Feature 3:
Longer Insert and Holder Tool Life
Feature 4:
Can be Used in Shouldering, Slotting, and Ramping Applications
ANSI Part Number:
MEV20M10062T
ISO Part Number:
MEV20-M10-06-2T
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
TOMT06…-GM, TOMT06…-SM
Old Material Number:
8864748
Insert Screw:
SB-3076TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-10
Tightening Torque:
2 Nm (for Insert Screw)
[LF] Functional Length (mm):
30.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
Product Notes 2:
Regular insert screw replacement is recommended.
[DC] Cutting Diameter (Decimal Inch):
0.7874
[DC] Cutting Diameter (mm):
20.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.7874
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7874
[H] Shank Height (Decimal Inch):
0.5906
[DCON] Connection Diameter (Decimal Inch):
0.4134
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
0.7362
[LF] Functional Length (Decimal Inch):
1.1811
[OAL] Overall Length (mm):
48.00
[OAL] Overall Length (Decimal Inch):
1.8898
