MEW 1000W100475103T Standard Length Shank, 90 Degree End Mill

MEW 1000W100475103T Standard Length Shank, 90 Degree End Mill

SKU:
8838041
$410.96
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
5.75 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEW 1000W100475103T Standard Length, Weldon Shank, 3 Flute, 90 Degree End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications
Additional Information
Tool Style:
MEW
Material:
Steel
Application:
Facing|Plunging|Shouldering|Slotting
Hand:
Right-Hand

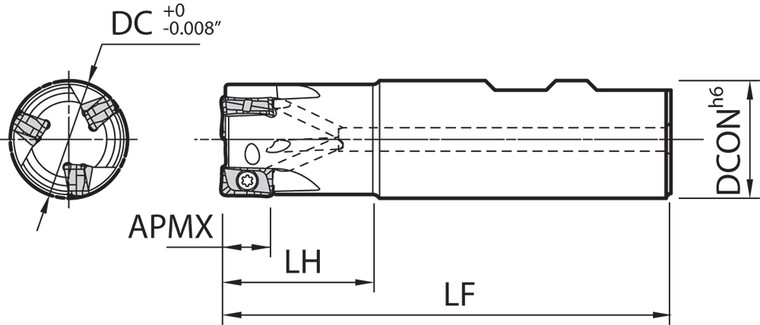

[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
25.40
[DCX] Cutting Diameter Maximum (mm):
25.40
[APMX] Maximum Depth of Cut (Decimal Inch):
0.3937
[APMX] Maximum Depth of Cut (mm):
10.00
Number of Inserts:
3
Number of Flutes:
3
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
25.40
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
The M-Four double-sided, 4-edge insert with Kyocera’s unique mold technology reduces cutting forces for reduced vibrations
Feature 2:
Low Cutting Forces Equivalent to Positive Inserts
Feature 3:
Improved Surface Finish & Minimized Vibration
ANSI Part Number:
MEW1000W100475103T
ISO Part Number:
MEW1000W100475103T
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
LOMU1004…, LOGT1004…
Old Material Number:
8607082
Insert Screw:
SB-3065TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-8
Tightening Torque:
1.2 Nm (for Insert Screw)
[LF] Functional Length (mm):
120.65
[LH] Head Length (mm):
35.89
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
1.0000
[DC] Cutting Diameter (mm):
25.40
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.0000
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.0000
[DCON] Connection Diameter (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
4.7500
[LH] Head Length (Decimal Inch):
1.4130
